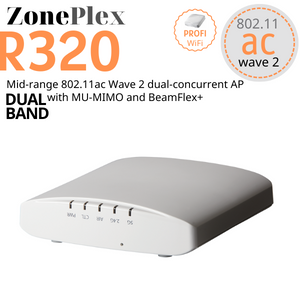

BỘ PHÁT WIFI RUCKUS ZONEFLEX R320

3,990,000₫

Tình trạng: Còn hàng

THƯƠNG MẠI LIÊN HỆ 0977.99.3774 - 094.6666.098 - ĐỂ CÓ GIÁ TỐT NHẤT

DATASHEET

Thông số kỹ thuật Ruckus R320


WI-FI
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac wave 2
Supported Rates	802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels	2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165
MIMO	2x2 SU-MIMO 2x2 MU-MIMO
Spatial Streams	2 SU-MIMO 2 MU-MIMO
Radio Chains and Streams	2x2:2
Channelization	20, 40, 80MHz
Security	WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK WIPS/WIDS
Other Wi-Fi Features	WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v Hotspot Hotspot 2.0 Captive Portal WISPr
RF
Antenna Type	BeamFlex adaptive antennas Adaptive antenna that provides up to 64 unique antenna patterns per band
Antenna Gain (max)	Up to 3dBi
Peak Transmit Power (aggregate across MIMO chains)	2.4GHz: 23dBm 5GHz: 23dBm
Minimum Receive Sensitivity	-101dBm
Frequency Bands	ISM (2.4-2.484GHz) U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz)
NETWORKING
Controller Platform Support	SmartZone ZoneDirector Unleashed Cloud Wi-Fi Standalone
Mesh	No Mesh support
IP	IPv4, IPv6
VLAN	802.1Q (1 per BSSID or dynamic per use based on RADIUS VLAN Pooling Port-based
802.1x	Authenticator & Supplicant
Tunnel	L2TP, GRE, Soft-GRE
Policy Management Tools	Application Recognition and Control Access Control Lists Device Fingerprinting Rate Limiting
PHYSICAL INTERFACES
Ethernet	1 x 1GbE port, RJ-45
PHYSICAL CHARACTERISTICS
Physical Size	13.2(L) x 13.8(W) x 3.1(H) cm 5.2(L) x 5.4(W) x 1.2(H) in
Weight	308g (10.9oz)
Mounting	Wall, Drop ceiling, Desk Secure bracket (sold separately)
Physical Security	Hidden latching mechanism Kensington lock T-bar Torx
Operating Temperature	0 ºC (32 ºF) to 40 ºC (149 ºF)
Operating Humidity	Up to 95%, non-condensing
